The PCD multi-tooth milling cutter application Cases
SNSTC 2025-04-15
The PCD (Polycrystalline Diamond) multi-tooth milling cutter is a high-precision, highly wear-resistant tool designed for high-speed machining. It is widely used in aerospace, automotive manufacturing, electronics, mold processing, and other industries. This tool is particularly suitable for the efficient machining of aluminum alloys, carbon fiber reinforced plastics (CFRP), copper, stainless steel, and other non-ferrous and non-metallic materials.
1.Structure Design of PCD Multi-Tooth Milling Cutter
PCD Material: PCD is composed of diamond micro-particles sintered under high temperature and high pressure, offering exceptional hardness and wear resistance.

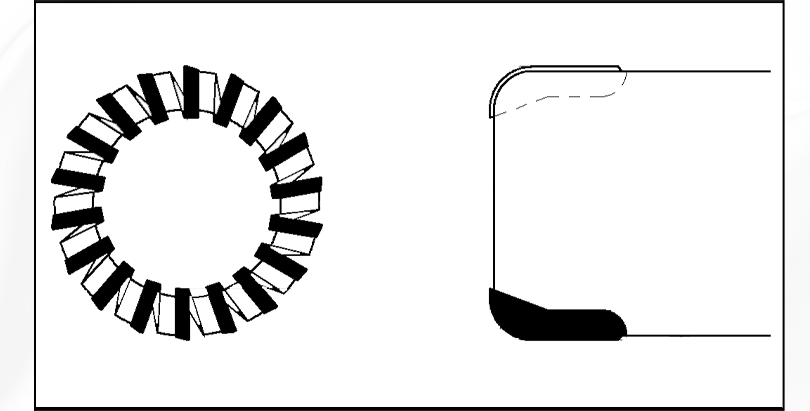

Multi-Tooth Design: (Typically 6-30 teeth) This design increases the feed rate while reducing the cutting load on each tooth, enhancing cutting efficiency, machining precision, and surface finish, as well as extending tool life.
Tool Interface: Common interfaces include BT, HSK, ISO, and CAT,etc., which can be selected based on the machine
Tool Body Material: The body is generally made of carbide (tungsten carbide) or mold steel, with PCD tip welded or embedded at the cutting edges.
Application: Suitable for precision milling, drilling, chamfering, and boring, ect., widely used in aerospace, automotive manufacturing, electronics, and mold production.
2. Applicable Machining Materials
The PCD multi-tooth milling cutter is suitable for machining difficult-to-process non-ferrous and non-metallic materials, such as:
Aluminum Alloys (e.g., engine cylinder heads, transmission housings, aerospace structural parts)
Carbon Fiber Reinforced Plastics (CFRP) (e.g., aircraft parts, wind turbine blades)
Copper & Brass (e.g., electronic components, precision connectors)
Plastic and Resin Materials (e.g., 3C products, medical devices)
Ceramic Matrix Composites (CMC) (e.g., aerospace , heat-resistant parts)
3. Advantages of PCD Multi-Tooth Milling Cutter
?Ultra-long tool life: 10-50 times longer than carbide milling cutters
? Ultra-high precision: Enables micron-level (μm) precision machining
?Low friction and superior surface finish: Minimizes cutting heat, reduces surface roughness, and enables mirror-like results.
?High cutting efficiency: Suitable for high-speed cutting and high-precision machining, enhancing productivity.
?Customizable design: Tooth profile, number of teeth, and cutting angles can be customized based on machining needs.
4. Typical Application Cases
（1）Aerospace
Application: PCD multi-tooth milling cutters are used for machining aircraft structural parts (such as aircraft skins, wing components, and CFRP materials).
Advantages: High-speed milling improves efficiency and reduces tool change frequency and minimizes burrs and edge chipping.
?：Tool Advantages:
Multi-tooth design reduces individual cutting load, improving surface quality
PCD material reduces friction, decreases cutting heat, and extends tool life
（2）Automotive Manufacturing
Application: High-speed machining of aluminum alloy parts such as engine cylinder heads and transmission housings.
Advantages: Tool life is more than 10 times longer than that of carbide milling cutters
?Tool Advantages:
High-speed machining effectively prevents tool sticking and chip accumulation.
Multi-tooth design reduces machining vibration enhancing dimensional accuracy
（3）3C Electronics & Precision Manufacturing
Application: Precision machining of smartphone metal frames, heat sinks, and other high-accuracy components.
Advantages: Ensures dimensional accuracy, reduces secondary machining, and achieves surface roughness of Ra 0.1–0.2?μm.
?Tool Advantages:
a.Multi-tooth design with PCD material ensures mirror-like surface quality.
b.Reduces cutting resistance and minimizes thermal deformation
